Aluminum Fork, Blue

Product Code： A16FK488STBL

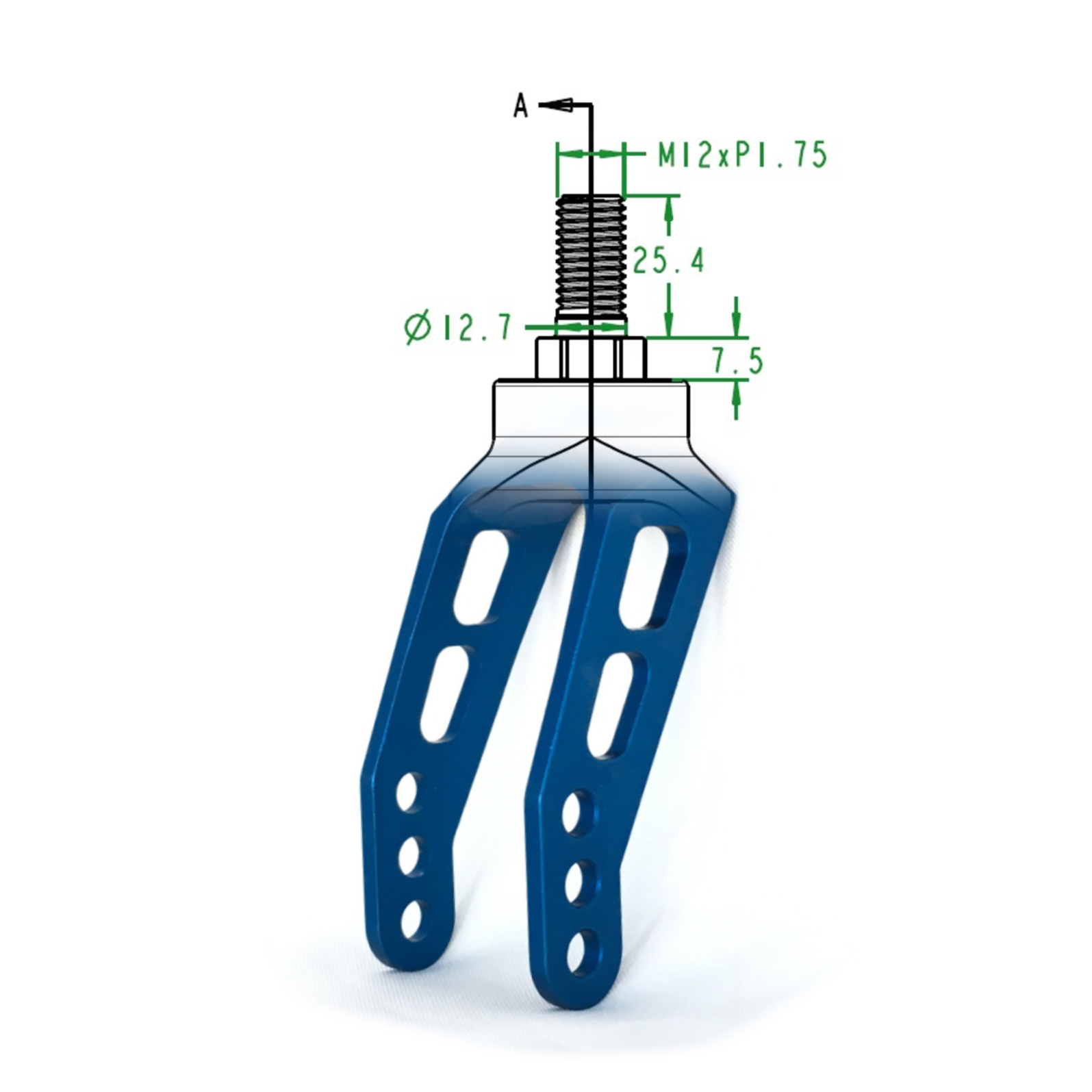

alu 6061-T6 caster fork: internal width 42 mm, height 117 mm, 3 height adjustable holes, blue anodized, with M12xP1.75x25.4 mm stem bolt

Color：
Black
Silver
Blue
Green
Red

Size：
-

Quantity： -A16FK488STBL -A16FK488STBL  PC

Inquiry





Product Information:
1. For Use With 3", 4", 5", 6" Wheel
2. Fork Stem: M12xP1.75x25.4 mm
(Dimension of stem bolt is negotiable)
3. Material: Aluminum 6061
4. Color: Blue
5. Item Weight: 186 g

Packaging Details:
1. Package Quantity: 50pcs/carton
2. Package Dimensions : 43x29x21 cm; 10 kg
