Aluminum Single Sided Fork, Black, Left

Product Code： A16FK12STBK-L

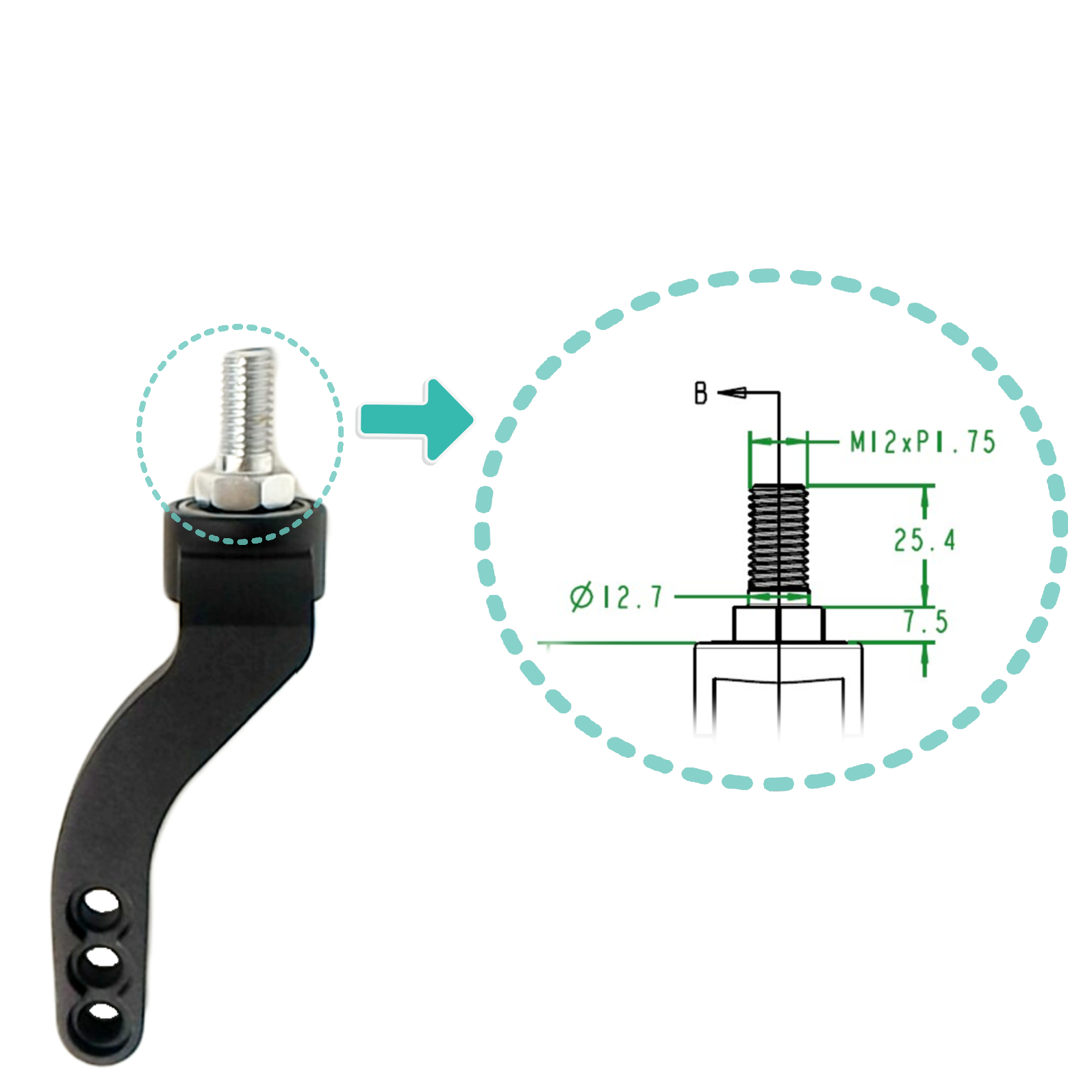

alu 6061-T6 caster single sided fork: height 117 mm, 3 height adjustable holes, black anodized, with M12xP1.75x25.4 mm stem bolt, left

Color：
Black
Silver

Size：
-

Quantity： -A16FK12STBK-L -A16FK12STBK-L  PC

Inquiry





Product Information:
1. For Use With 3", 4", 5", 6" Wheel
2. Fork Stem: M12xP1.75x25.4 mm
(Dimension of stem bolt is negotiable)
3. Material: Aluminum 6061
4. Color: Black
5. Item Weight: 194 g (single sided)

Packaging Details:
1. Package Quantity: 50pcs/carton
2. Package Dimensions : 44x30x16 cm; 10.5 kg
