Aluminum Fork, Blue

Product Code： A16FK458STBL

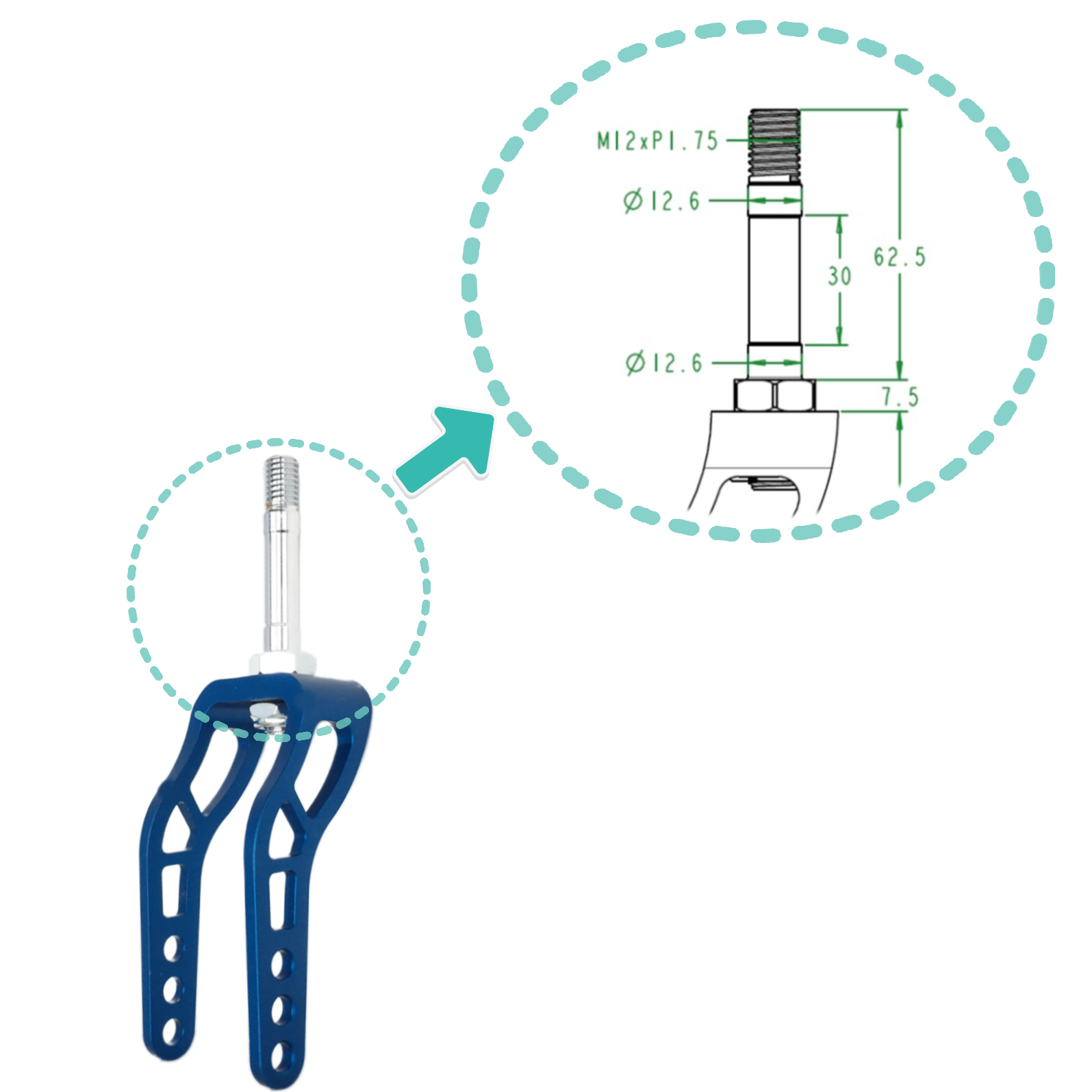

alu 6061-T6 caster fork: internal width 42 mm, height 119 mm, 3 height adjustable holes, blue anodized, with stem bolt

Color：
Black
Silver
Blue
Green
Red

Size：
-

Quantity： -A16FK458STBL -A16FK458STBL  PC

Inquiry





Product Information:
1. For Use With 3", 4", 5", 6" Wheel
2. Internal Width: 42 mm
3. Dimension of stem bolt is negotiable
4. Material: Aluminum 6061
5. Color: Blue
6. Item Weight: 178 g

Packaging Details:
1. Package Quantity: 50pcs/carton
2. Package Dimensions : 1 cuft ; 10.5 kg
