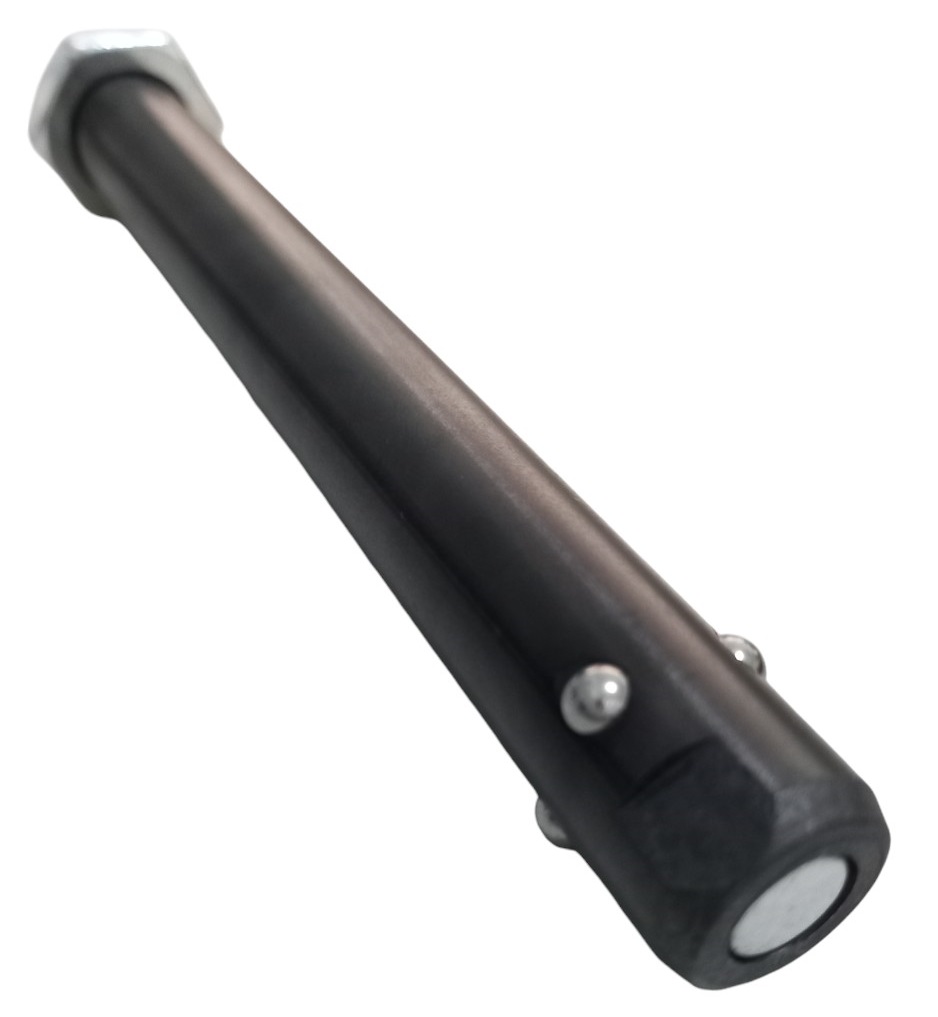

QR Axle, SCM415, Ø5/8"x118 mm, 4 Release Balls

Product Code： 5NM118C4B-A12

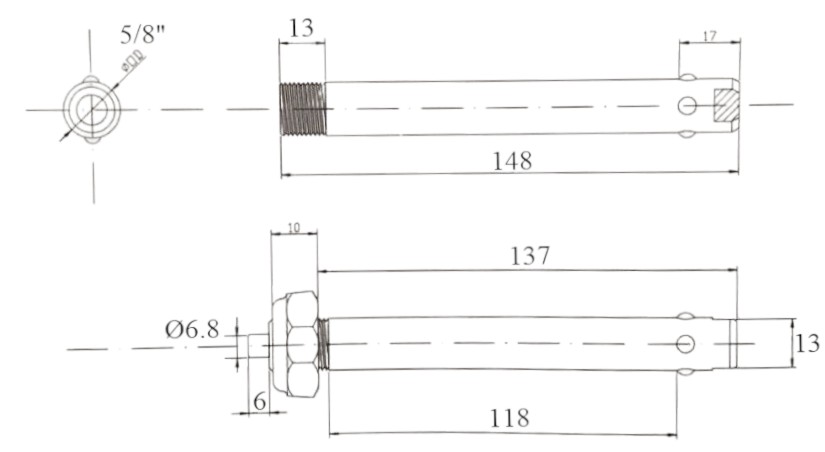

QR axle, SCM415, Ø5/8"x148 mm (TL), effective length (L3): 118 mm, thread length (L2): 13 mm, with small button, 4 release balls

Quantity： -5NM118C4B-A12 -5NM118C4B-A12  PC

Inquiry



Product Information:
1. Size: Ø5/8"x118 mm
2. Material: SCM415 Alloy Steel
3. Surface Finish: Black-Oxide
4. Button Style: Small Button
5. Item Weight: 226 g





RELATED PRODUCTS

7PM101C-A12
7PM101C-A12
QR axle, SCM415, Ø12.7x124 mm (TL), effective length (L3): 101 mm, thread length (L2): 11 mm, with black alu cap head Ø28 mm, black-oxide finish
7PM120C-A12
7PM120C-A12
QR axle, SCM415, Ø12.7x143 mm (TL), effective length (L3): 120 mm, thread length (L2): 12 mm, with black alu cap head Ø28 mm, black-oxide finish
7PM127C-A12
7PM127C-A12
QR axle, SCM415, Ø12.7x151 mm (TL), effective length (L3): 127 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm, black-oxide finish
7PS104C-A12
7PS104C-A12
QR axle, SUS410, Ø12.7x128 mm (TL), effective length (L3): 104 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm
7PS110C-A12
7PS110C-A12
QR axle, SUS410, Ø12.7x134 mm (TL), effective length (L3): 110 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm
7PS115C-A12
7PS115C-A12
QR axle, SUS410, Ø12.7x139 mm (TL), effective length (L3): 115 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm
7PS120C-A12
7PS120C-A12
QR axle, SUS410, Ø12.7x144 mm (TL), effective length (L3): 120 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm

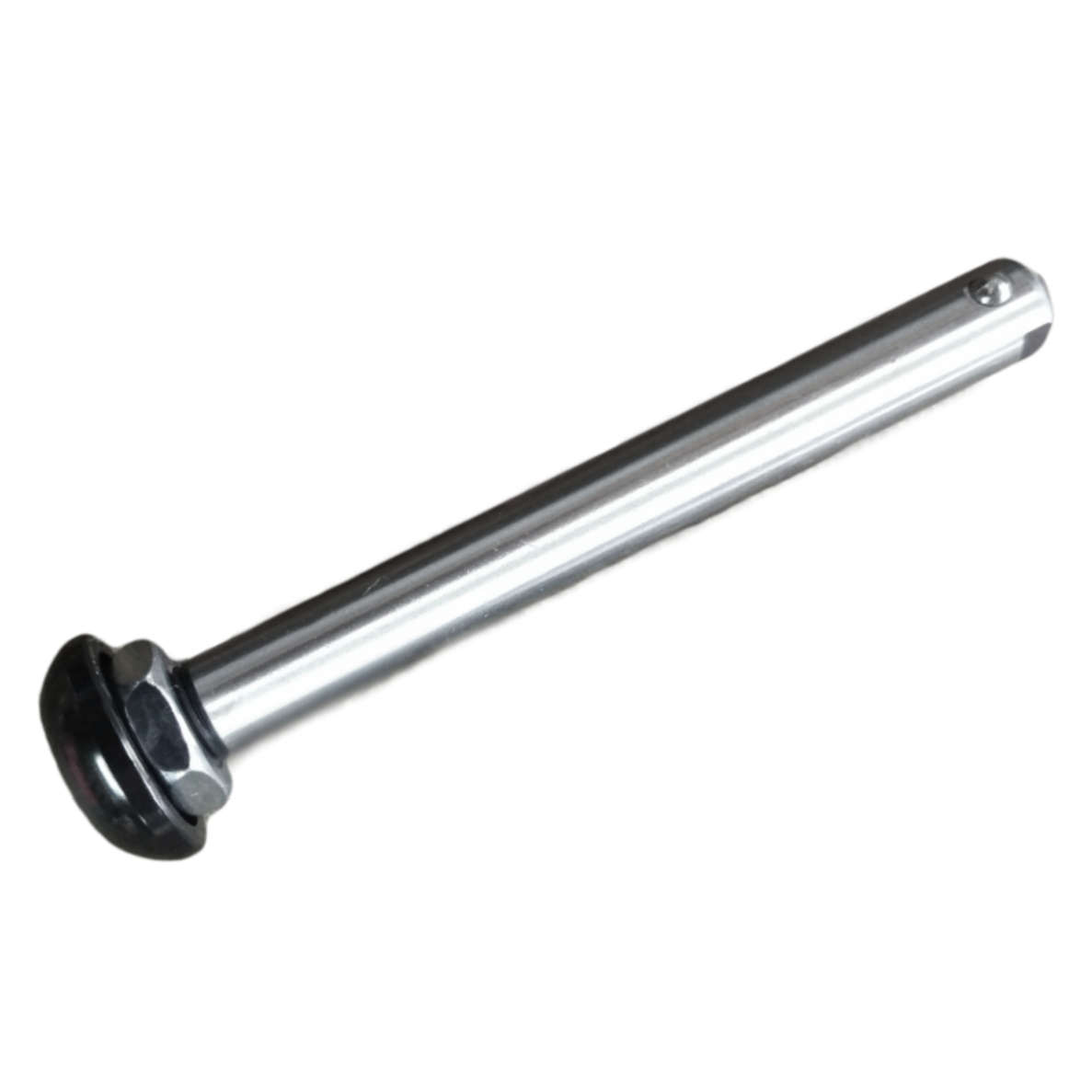

7PS130C-A12
7PS130C-A12
QR axle, SUS410, Ø12.7x154 mm (TL), effective length (L3): 130 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm
7PS99C-A12
7PS99C-A12
QR axle, SUS410, Ø12.7x123 mm (TL), effective length (L3): 99 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm
7NM101C-A12
7NM101C-A12
QR axle, SCM415, Ø12.7x124 mm (TL), effective length (L3): 101 mm, thread length (L2): 12 mm, with small button, black-oxide finish
7PM100C-A12
7PM100C-A12
QR axle, SCM415, Ø12.7x124 mm (TL), effective length (L3): 100 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm, black-oxide finish
NM100C-A12
NM100C-A12
QR axle, SCM415, Ø12x123 mm (TL), effective length (L3): 100 mm, thread length (L2): 12 mm, with small button, black-oxide finish
NM108C-A14
NM108C-A14
QR axle, SCM415, Ø12x127 mm (TL), effective length: 108 mm, with small button, black-oxide finish
NM117C-A14
NM117C-A14
QR axle, SCM415, Ø12x140 mm (TL), effective length (L3): 117 mm, with small button, black-oxide finish
PM100C-A12
PM100C-A12
QR axle, SCM415, Ø12x124 mm (TL), effective length (L3): 100 mm, thread length (L2): 13 mm, with black alu cap head Ø28 mm, black-oxide finish
PM121C-A14
PM121C-A14
QR axle, SCM415, Ø12x143 mm (TL), effective length (L3): 121 mm, thread length (L2): 12 mm, with black alu cap head Ø28 mm, black-oxide finish
PM98C-A14
PM98C-A14
QR axle, SCM415, Ø12x120 mm (TL), effective length (L3): 98 mm, thread length (L2): 12 mm, with black alu cap head Ø28 mm, black-oxide finish

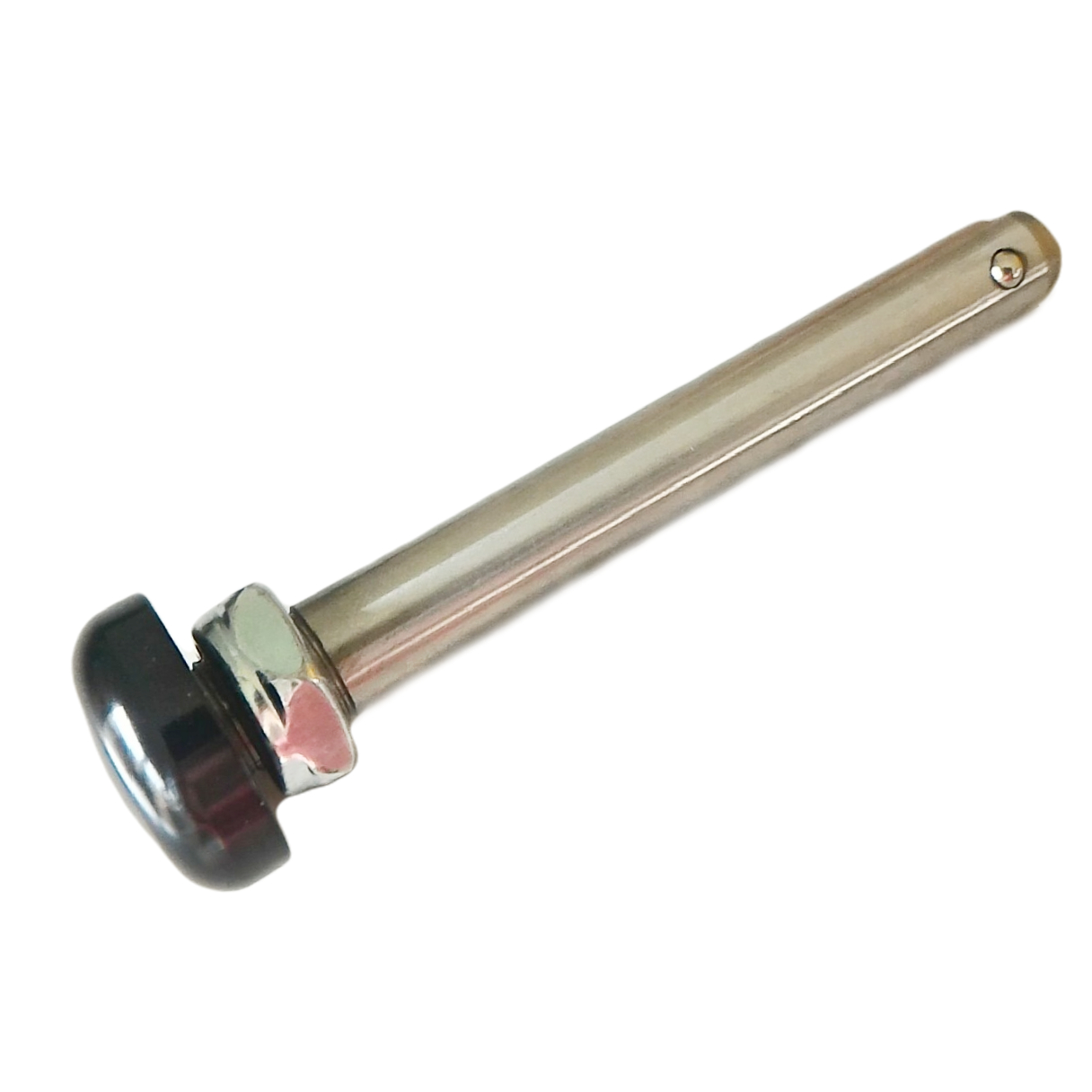

PS85C-A14
PS85C-A14
QR axle, SUS430, Ø12x105 mm (TL), max. effective length: 85 mm, with alu black cap head Ø27.6 mm
